5-Ton Industrial Integrated Hydraulic Bearing Puller | 2- or 3-Jaw Operation
This is an Upgraded Integrated Hydraulic Puller (Model: YL-5T) designed for efficient and powerful removal of gears, bearings, pulleys, and other tight-fitting components.
Core Features & Design
-
Integrated Oil Cylinder: The cylinder is Welded and Formed into One Piece (using Argon Arc Welding) to ensure a sturdy structure and a No Oil Leakage guarantee.
-
Durable Build: The main body is Alloy Steel Forged for high strength, durability, and resilience against fracture.
-
Oil Seal Protection: The design includes an Integrated Oil Cover to better protect the internal oil bag (oil seal). The threaded part is the actual oil cylinder.
-
Effort-Saving Operation: Features a Movable Handle and an easy-to-use Oil Return Switch (Off/On) for controlled operation.
-
Complete Kit: Comes packed in a durable Yellow Plastic Box (Carrying Case) with a user manual, oil seals, and a small wrench included as a gift/bonus.
Technical Specifications (Model YL-5T)
| Specification | Measurement |
| Model Number | YL-5T |
| Tonnage Capacity | 5 Tons (5T) |
| Max Horizontal Reach (Spread) | 200 mm |
| Max Vertical Reach (Depth) | 140 mm |
| Axial Stroke (Ram Travel) | 50 mm |
| Threaded Diameter (Screw Rod) | 45 mm |
| Weight (Puller Body) | 6 kg (13.2 lbs) |
| Total Length (A) | 375 mm |
| Oil Cylinder Outer Diameter (B) | 60 mm |
| Jaw Length (C) | 240 mm |
| Jaw Pin Length (D) | 152 mm |
Application Range
| Specification | Measurement |
| Outside Diameter (O.D.) | 24-80 mm |
| Pulling Range (Spread) | 200-208 mm |
| Applicable Bearing Model | 300-2307 (Common Industrial/Automotive Bearings) |
Comprehensive Kit Contents
The set includes the following components:
-
Reinforced Pump Body (Hydraulic Cylinder)
-
Operating Handle
-
3x Jaw Feet (Puller Arms) made from Alloy Steel
-
Puller Yoke (Crosshead Ring)
-
Center Pin (Plunger)
-
6x Bolts (Screws)
-
6x Puller Plates (Metal Shims/Adjusters)
-

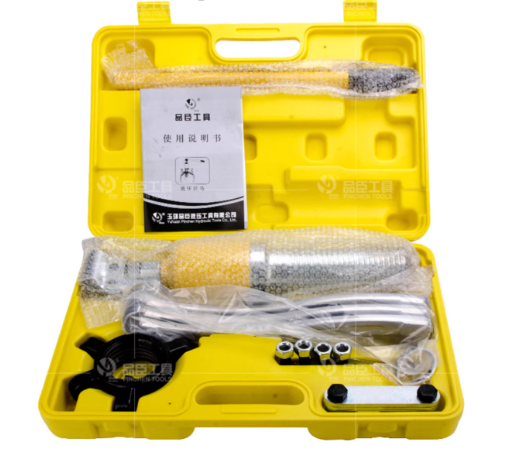

Yellow Plastic Box (Carrying Case)
-
Bonus: Sealing Rings and Small Wrench
